Ποδήλατο Cube Nature ONE black´n´black - 2025
Δείτε το προιόν

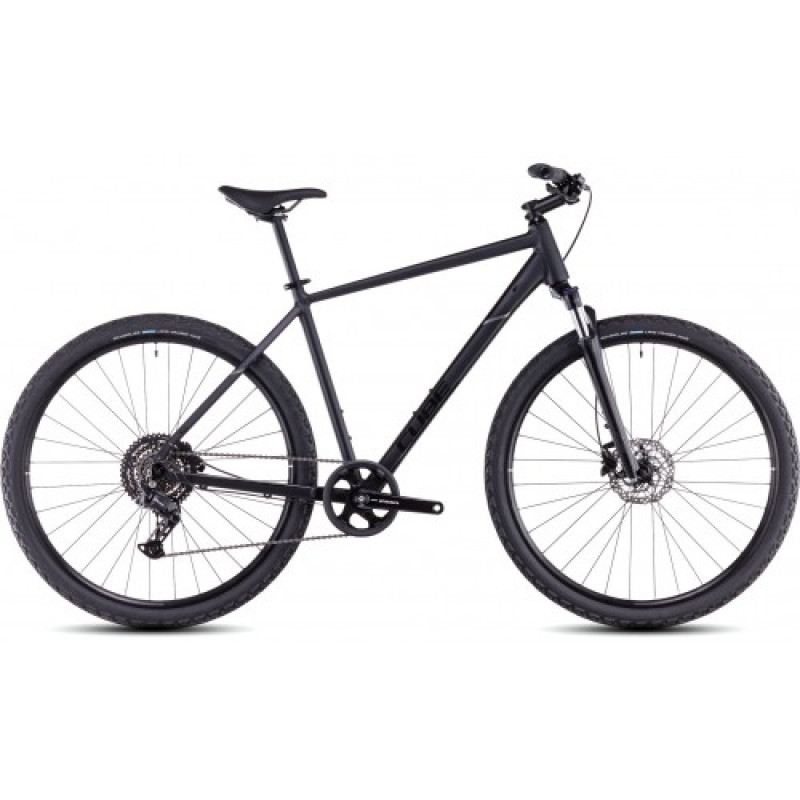

Cube Nature ONE black´n´black - 2025
- frame Aluminium Superlite, Trekking Cross, Taper, Double Butted
- size Classic: 46cm, 50cm, 54cm 58cm, 62cm
- Suspension fork SR Suntour NEX HLO, 63mm, Lockout
- brake system Shimano BR-MT200, Hydr. Disc Brake (160/160)
- rear derailleur Shimano Essa RD-U2000-GS, 8-Speed
- shifters Shimano SL-M315, Rapidfire-Plus
- bottom bracket Thun Paso-ML, 68mm, BSA
- crankset Shimano Essa FC-U2000-1, 40T
- cassette Shimano CS-HG400, 11-45T
- chain KMC Z8
- headset VP Integrated, Top 1 1/8", Bottom 1 1/2"
- Stem CUBE Performance Stem Pro, 31.8mm
- handlebar CUBE Comfort Trail Bar, 700mm
- grips ACID Travel Comfort
- rims CUBE EX25, 32H, Disc, Tubeless Ready
- front hub Shimano HB-QC300, QR, Centerlock
- rear hub Shimano FH-QC300-HM, QR, Centerlock
- tyres Schwalbe Land Cruiser, Active, 50-622
- saddle ACID Sequence Pro 160
- seat post CUBE Performance Post, 27.2mm
- seat clamp CUBE Varioclose, 31.8mm
- pedals CUBE PP MTB
- colour black´n´black
- weight 14,7 kg
- Structural Weight 120 kg
Geometry
46 cm | 50 cm | 54 cm | 58 cm | 62 cm | |
Seat tube | 440 | 480 | 520 | 560 | 600 |
Top Tube Horizontal | 570 | 585 | 600 | 615 | 622 |
Seat angle | 74.5° | 73.5° | 73° | 73° | 73° |
Head tube angle | 70.5° | 71° | 71° | 71° | 71° |
Chainstays | 470 | 470 | 470 | 470 | 470 |
Head tube | 105 | 120 | 140 | 155 | 170 |
Wheelbase | 1105 | 1104 | 1114 | 1130 | 1137 |
BB-Height to Hub | 60 | 60 | 60 | 60 | 60 |
Protrusion height - 80mm | 772 | 805 | 838 | 867 | 897 |
Reach | 405 | 404 | 407 | 418 | 421 |
Stack | 595 | 612 | 630 | 645 | 659 |
Ergonomics
All values are given in millimetres or degrees.
